4-796635-1

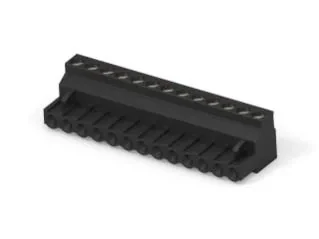

13 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
13 Position Terminal Block Plug, Female Sockets 0.200
MAN. PRODUCT NUMBER : 4-796635-1 Copy
MANUFACTURER : TE Connectivity AMP Connectors Copy
PACKAGE TYPE : Bulk
4-796635-1 - TE CONNECTIVITY AMP CONNECTORS - TERM BLOCK PLUG 13POS 5.08MM
TypePlug, Female Sockets
Number of Positions13
Positions Per Level13
Number of Levels1
Pitch0.200" (5.08mm)
Header Orientation-
Plug Wire Entry180°
Termination StyleScrew - Rising Cage Clamp
Mounting TypeFree Hanging (In-Line)
Current - IEC-
Current - UL15 A
Voltage - UL300 V
Wire Gauge or Range - AWG12-30 AWG
Wire Gauge or Range - mm²0.05-3mm²
ColorBlack
Operating Temperature-40°C ~ 110°C
Contact Mating FinishTin
FeaturesPositions Stamped, Retention Latches (Non-Wire Side)
