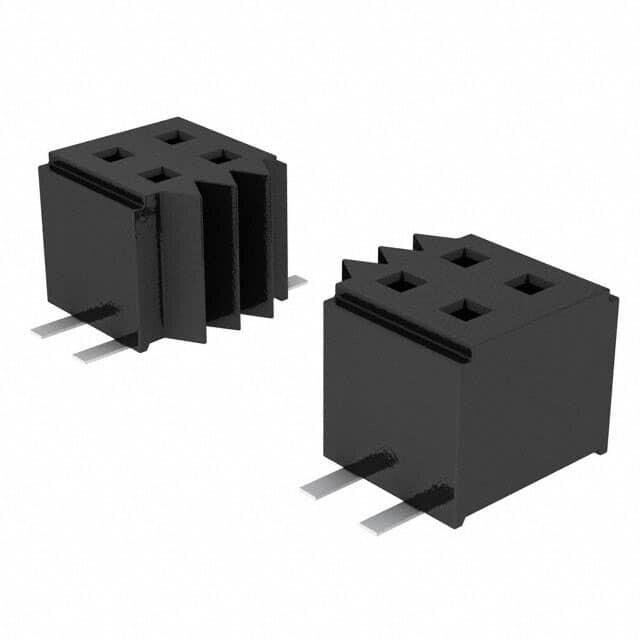

| CLM-112-02-L-D - SAMTEC INC. - CONN RCPT 24POS 0.039 GOLD SMD | |
| Packaging | Bulk |
| Features | - |
| Connector Type | Receptacle |
| Voltage Rating | - |
| Current Rating (Amps) | 2.8A per Contact |
| Mounting Type | Surface Mount |
| Number of Positions | 24 |
| Style | Board to Board |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |

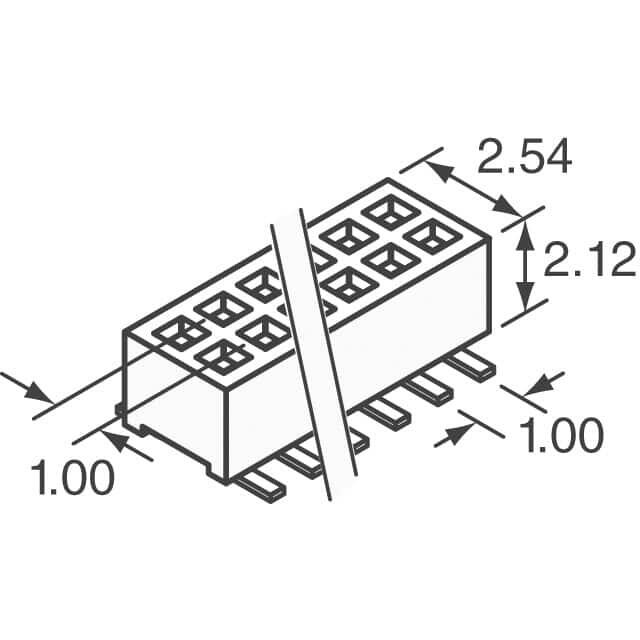

| Pitch - Mating | 0.039" (1.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.089" (2.26mm) |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Number of Rows | 2 |
