744773122

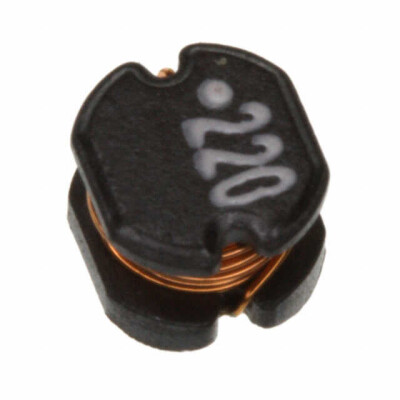

22 µH Unshielded Drum Core, Wirewound Inductor 1 A 370mOhm Max Nonstandard
| 744773122 - WÜRTH ELEKTRONIK - FIXED IND 22UH 1A 370 MOHM SMD | |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 370mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 20MHz |
| Ratings | - |
| Current - Saturation (Isat) | 1.22A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 10 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Inductance | 22 µH |
| Current Rating (Amps) | 1 A |
