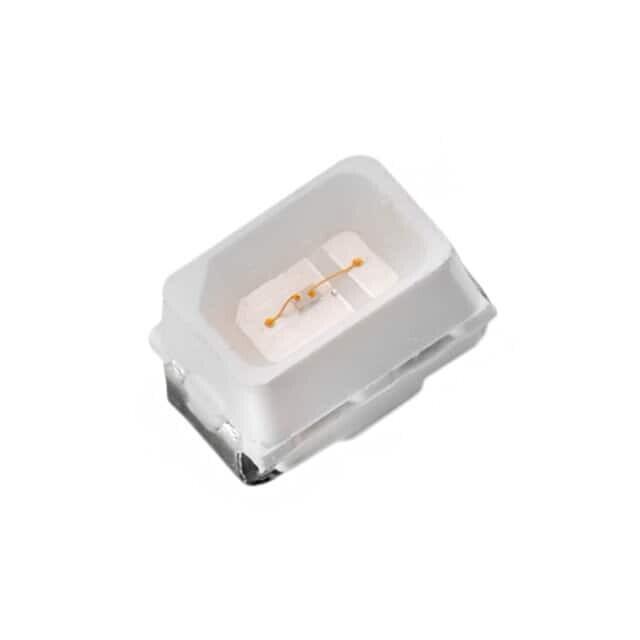

150224VS73100A
Green 570nm LED Indication - Discrete 2V 2-SMD, J-Lead
| 150224VS73100A - WÜRTH ELEKTRONIK - LED GREEN CLEAR 2SMD | |
| Packaging | Cut Tape (CT) |
| Color | Green |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 70mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.40mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm |
| Wavelength - Peak | 572nm |
| Features | - |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 2.00mm L x 1.40mm W |
| Height (Max) | 1.41mm |
