744773112

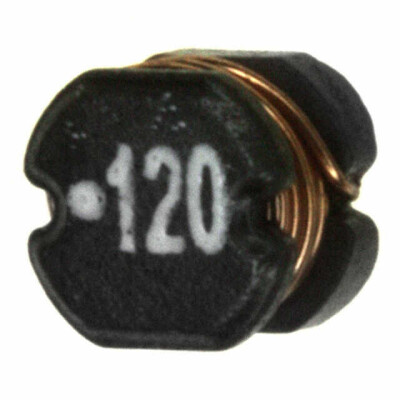

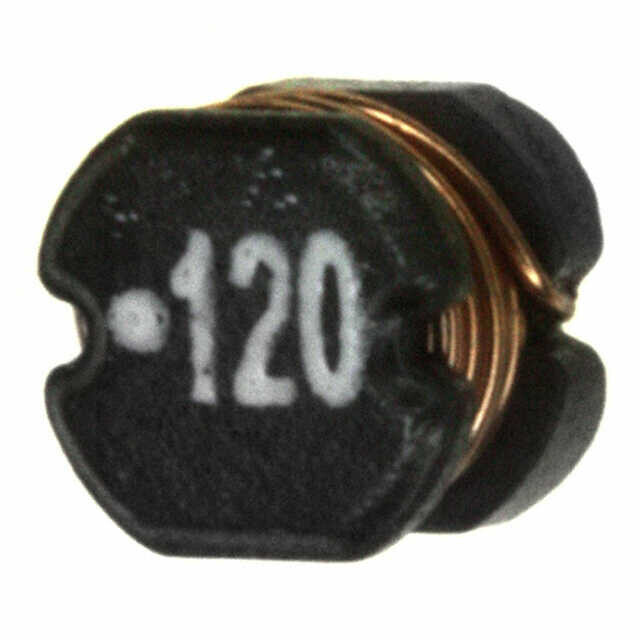

12 µH Unshielded Drum Core, Wirewound Inductor 1.28 A 210mOhm Max Nonstandard
| 744773112 - WÜRTH ELEKTRONIK - FIXED IND 12UH 1.28A 210MOHM SMD | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.28 A |
| Current - Saturation (Isat) | 1.62A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 210mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 32MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
