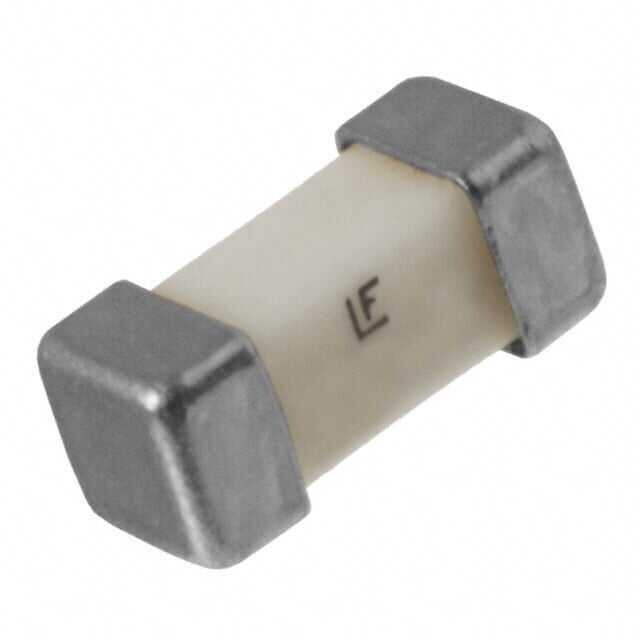

04511.25MRL
1.25 A 125 V 125 V Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
| 04511.25MRL - LITTELFUSE INC. - FUSE BRD MT 1.25A 125VAC/VDC SMD | |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 1.25 A |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Response Time | Fast Blow |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 50A |
| Melting I²t | 0.664 |
| Approval Agency | CSA, PSE, UL |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) |
