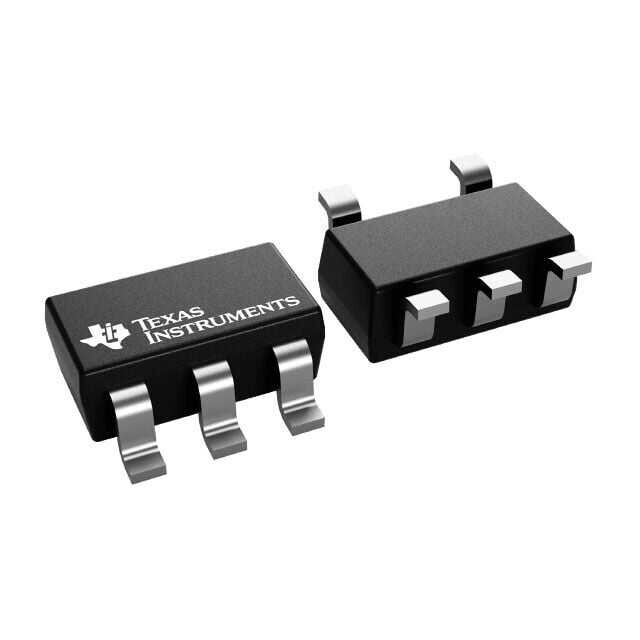

TPS7B6933QDBVRQ1
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
| TPS7B6933QDBVRQ1 - TEXAS INSTRUMENTS - IC REG LINEAR 3.3V 150MA SOT23-5 | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.8V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 25 µA |
| PSRR | 60dB (100Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 150°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
