Özellik | Değer |
LCD Type | TFT/Transmissive/Normally white |
Size | 4.3 Inch |
Viewing Direction | 12:00 (without image inversion) O’ Clock |
Gray Scale Inversion Direction | 6:00 O’ Clock |
LCM (W × H × D) | 106.30 × 68.00 × 7.00 mm3 |
Active Area (W × H) | 95.04 × 53.86 mm2 |
Dot Pitch (W × H) | 0.066 × 0.198 mm2 |
Number of Dots | 480 (RGB) × 272 |
Driver IC | FT800 |
Backlight Type | 10 LEDs |

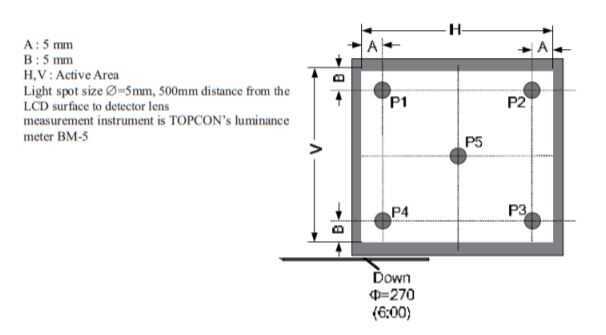

Surface Luminance | 550 cd/m2 |
Interface Type | SPI/I2C |
Color Depth | 262k |
Pixel Arrangement | RGB Vertical Stripe |
Surface Treatment Anti-glare | |
Input Voltage 3.3 V | |
With/Without TSP | Without Touch Panel |
Weight | 76 g |
