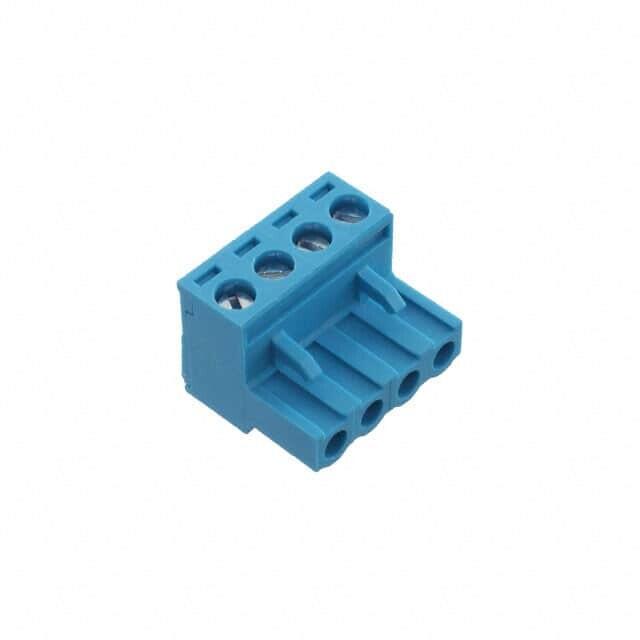

TBP01P1-508-04BE
4 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
| TBP01P1-508-04BE - CUI DEVICES - TERMINAL BLOCK, PLUGGABLE, 5.08 | |
| Packaging | Bag |
| Features | Retention Latches (Non-Wire Side) |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Pitch | 0.200" (5.08mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 105°C |
| Termination Style | Screw - Rising Cage Clamp |
| Current - IEC | 20A |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 2.5mm² |
| Positions Per Level | 4 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Nickel |
| Current - UL | 16 A |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
