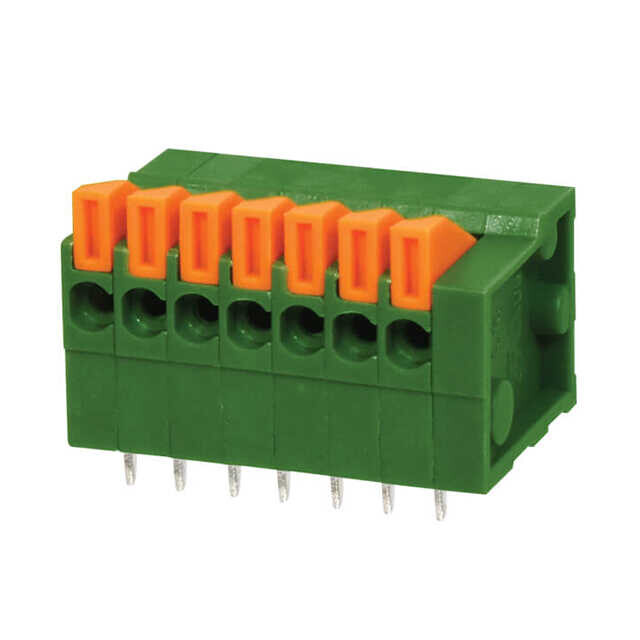

TBL003-254-07GR-2OR
7 Position Wire to Board Terminal Block Horizontal with Board 0.100" (2.54mm) Through Hole
| TBL003-254-07GR-2OR - CUI DEVICES - TERMINAL BLOCK, SCREWLESS, 2.54, | |
| Packaging | Tray |
| Features | Interlocking (Side), Lever Actuated |
| Color | Green |
| Mounting Type | Through Hole |
| Wire Gauge | 20-24 AWG |
| Pitch | 0.100" (2.54mm) |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 7 |
| Wire Termination | Screwless |
| Current | 2 A |
| Number of Levels | 1 |
| Voltage | 150 V |
