SI7113DN-T1-GE3

P-Channel 100 V 13.2A (Tc) 3.7W (Ta), 52W (Tc) Surface Mount PowerPAK® 1212-8

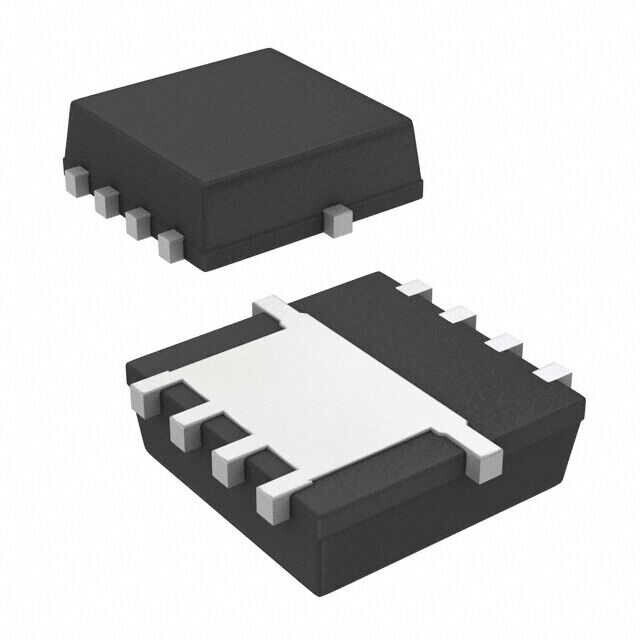

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
P-Channel 100 V 13.2A (Tc) 3.7W (Ta), 52W (Tc) Surface Mount PowerPAK® 1212-8 - 1
MAN. PRODUCT NUMBER : SI7113DN-T1-GE3 Copy
MANUFACTURER : Vishay Siliconix Copy
PACKAGE TYPE : Cut Tape (CT)
SI7113DN-T1-GE3 - VISHAY SILICONIX - MOSFET P-CH 100V 13.2A PPAK
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C13.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs134mOhm @ 4A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs55 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1480 pF @ 50 V
FET Feature-
Power Dissipation (Max)3.7W (Ta), 52W (Tc)
Operating Temperature-50°C ~ 150°C (TJ)
Grade-
Qualification-
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® 1212-8
Package / CasePowerPAK® 1212-8
