LM4051CIM3X-ADJ/NOPB
Shunt Voltage Reference IC Adjustable 1.212V 10 VV ±0.5% 12 mA SOT-23-3
| LM4051CIM3X-ADJ/NOPB - TEXAS INSTRUMENTS - IC VREF SHUNT ADJ 0.5% SOT23-3 | |
| Packaging | Cut Tape (CT) |
| Tolerance | ±0.5% |

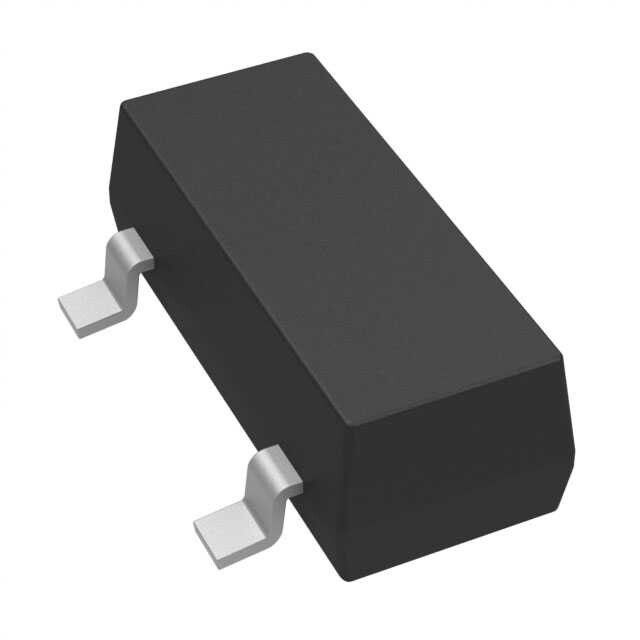

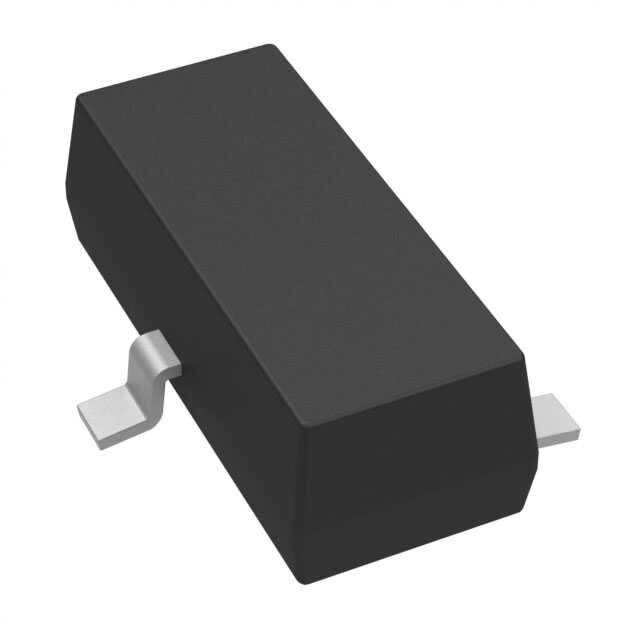

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Temperature Coefficient | 50ppm/°C |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | - |
| Supplier Device Package | SOT-23-3 |
| Voltage - Output (Min/Fixed) | 1.212V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 20µVrms |
| Current - Cathode | 70 µA |
| Current - Output | 12 mA |
| Voltage - Output (Max) | 10 V |
