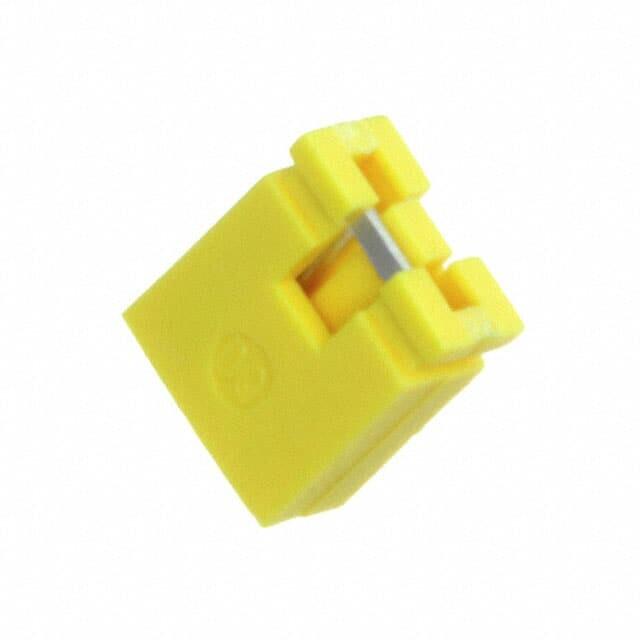

SNT-100-YW-T
2 (1 x 2) Position Shunt Connector Yellow Open Top 0.100" (2.54mm) Tin
| SNT-100-YW-T - SAMTEC INC. - SHUNT JUMPERS | |
| Packaging | Bulk |
| Type | Open Top |
| Gender | Female Sockets |
| Number of Positions or Pins (Grid) | 2 (1 x 2) |
| Pitch | 0.100" (2.54mm) |
| Height | 0.240" (6.10mm) |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Color | Yellow |
| Material Flammability Rating | UL94 V-0 |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Voltage Rating | - |
| Current Rating (Amps) | 4.3A per Contact |
