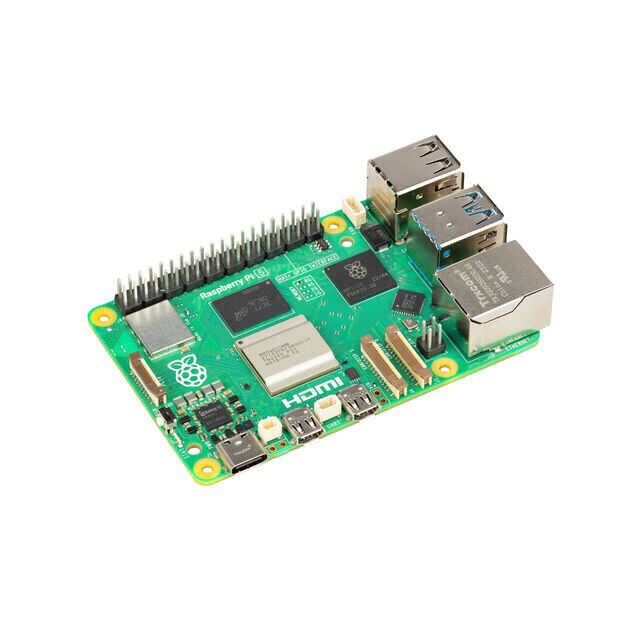

| SC1110 - RASPBERRY PI - SBC 2.4GHZ 4 CORE 2GB RAM | |
| Core Processor | Broadcom BCM2712 Arm Cortex-A76 |
| Speed | 2.4GHz |
| Number of Cores | 4 |
| Power (Watts) | - |
| Cooling Type | - |
| Size / Dimension | 3.370" x 2.224" (85.60mm x 56.50mm) |
| Form Factor | - |
| Expansion Site/Bus | Bluetooth 5.0 / Bluetooth Low Energy (BLE), PCIe |
| RAM Capacity/Installed | 2GB |
| Storage Interface | microSD |
| Video Outputs | HDMI, MIPI |
| Ethernet | GbE |
| USB | USB 2.0 (2), USB 3.0 (2) |
| Digital I/O Lines | 40 |
| Analog Input:Output | - |
| Watchdog Timer | - |
| Operating Temperature | - |
