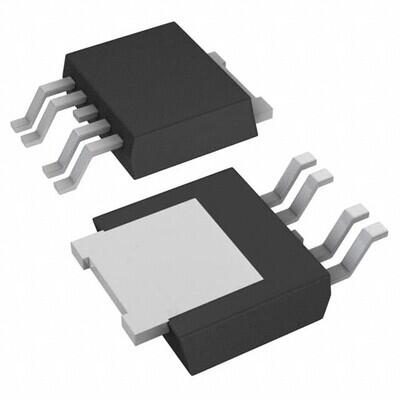

ITS428L2ATMA1
Power Switch/Driver 1:1 N-Channel 5.8A PG-TO252-5-11
| ITS428L2ATMA1 - INFINEON TECHNOLOGIES - IC PWR SWITCH N-CHAN 1:1 TO252-5 | |
| Packaging | Cut Tape (CT) |
| Features | Status Flag |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | On/Off |
| Switch Type | General Purpose |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 50mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4.75V ~ 43V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5.8A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TO252-5-11 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
