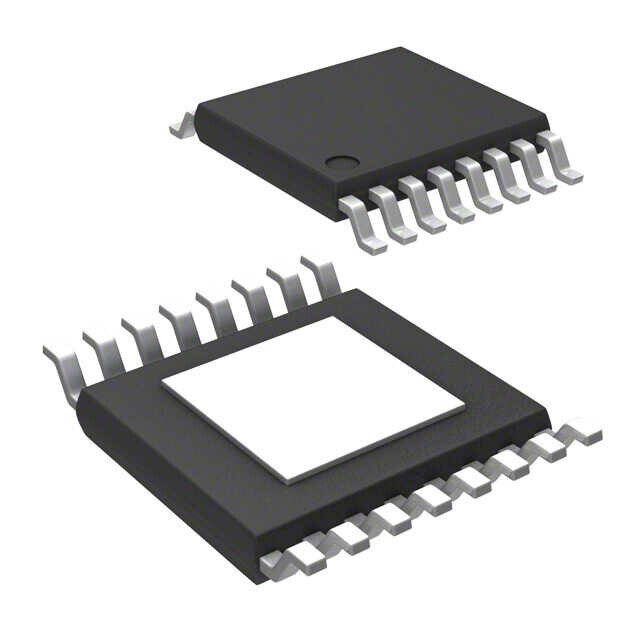

TPS2H000AQPWPRQ1
Power Switch/Driver 1:1 N-Channel 750mA 16-HTSSOP
| TPS2H000AQPWPRQ1 - TEXAS INSTRUMENTS - IC PWR SWTCH N-CHAN 1:1 16HTSSOP | |
| Packaging | Digi-Reel® |
| Features | Status Flag |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | On/Off |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 1Ohm |
| Input Type | - |
| Voltage - Load | 3.4V ~ 40V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 750mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 16-HTSSOP |
| Fault Protection | Current Limiting (Adjustable), Over Temperature |
| Grade | Automotive |
| Qualification | AEC-Q100 |
