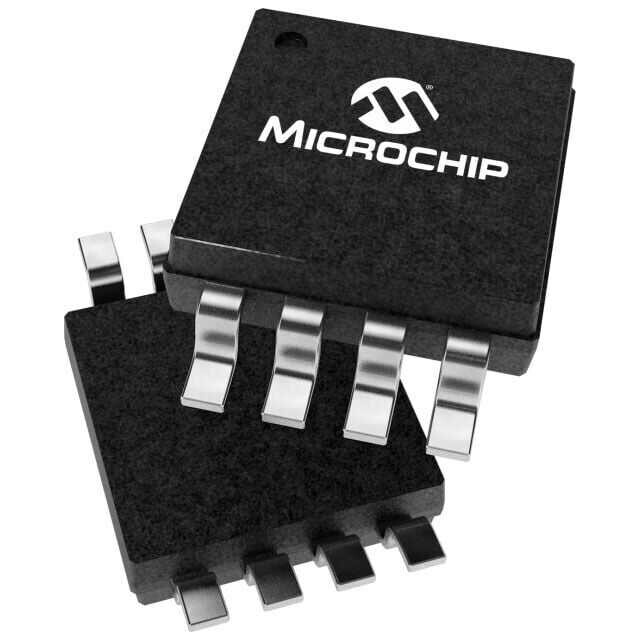

MCP6V02-E/SN
Zero-Drift Amplifier 2 Circuit Rail-to-Rail 8-SOIC
| MCP6V02-E/SN - MICROCHIP TECHNOLOGY - IC OP AMP 2CH 8-SOIC | |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1.3 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 2 µV |
| Current - Supply | 300µA (x2 Channels) |
| Current - Output / Channel | 22 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
