MCB130N10YA-TP

N-Channel 100 V 130A (Tc) 260W (Tc) Surface Mount D2PAK

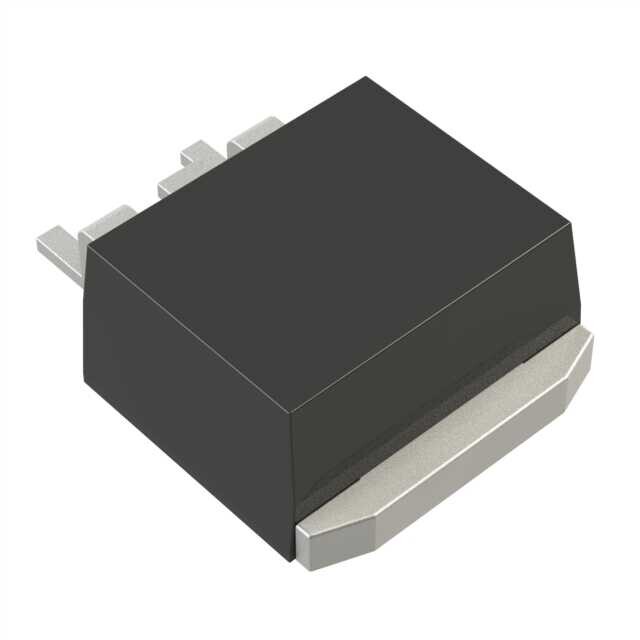

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
N-Channel 100 V 130A (Tc) 260W (Tc) Surface Mount D2PAK - 1
MAN. PRODUCT NUMBER : MCB130N10YA-TP Copy
MANUFACTURER : Micro Commercial Co Copy
PACKAGE TYPE : Cut Tape (CT)
MCB130N10YA-TP - MICRO COMMERCIAL CO - N-CHANNEL MOSFET, D2-PAK
PackagingCut Tape (CT)
Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 150°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C130A (Tc)
Rds On (Max) @ Id, Vgs4.6mOhm @ 20A, 10V
FET Feature-
Power Dissipation (Max)260W (Tc)
Vgs(th) (Max) @ Id4V @ 250µA
Supplier Device PackageD2PAK
Drive Voltage (Max Rds On, Min Rds On)10V
Vgs (Max)±20V
Drain to Source Voltage (Vdss)100 V
Gate Charge (Qg) (Max) @ Vgs66 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds4600 pF @ 50 V
