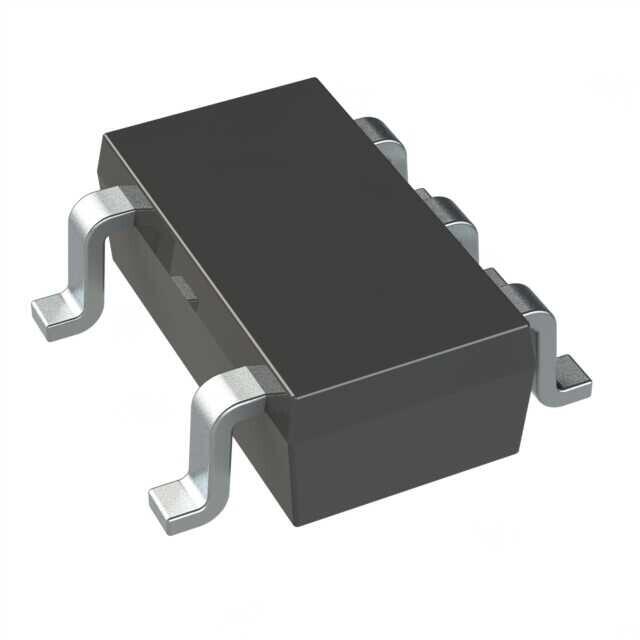

MCP1793T-5002H/OT - MICROCHIP TECHNOLOGY - IC REG LINEAR 5V 100MA SOT23-5 | |
Packaging | Cut Tape (CT) |
Package / Case | SC-74A, SOT-753 |
Output Type | Fixed |
Mounting Type | Surface Mount |
Current - Output | 100mA |
Operating Temperature | -40°C ~ 150°C (TA) |
Output Configuration | Positive |
Current - Quiescent (Iq) | 45 µA |
Voltage - Input (Max) | 55V |
Number of Regulators | 1 |
Supplier Device Package | SOT-23-5 |
Voltage - Output (Max) | - |
Voltage - Output (Min/Fixed) | 5V |
Control Features | Enable |
PSRR | 80dB ~ 55dB (100Hz ~ 100kHz) |
Voltage Dropout (Max) | 1.2V @ 100mA |
Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
Current - Supply (Max) | 150 µA |
