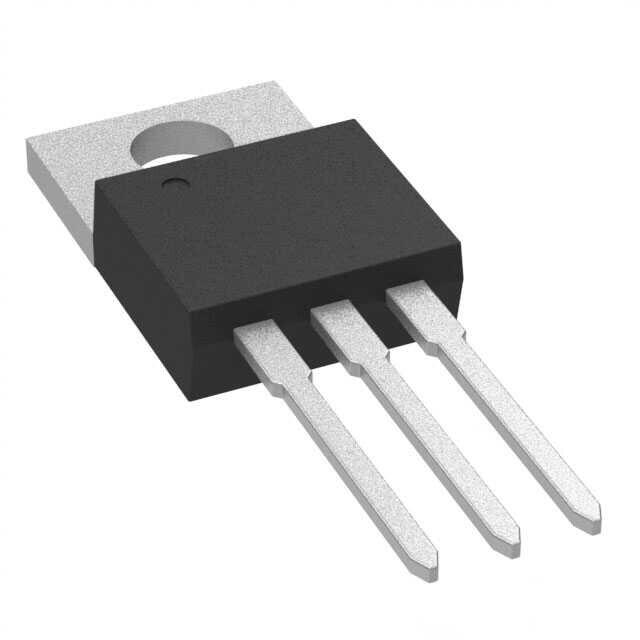

LM2937ET-5.0/NOPB - TEXAS INSTRUMENTS - IC REG LINEAR 5V 500MA TO220-3 | |
Packaging | Tube |
Package / Case | TO-220-3 |
Output Type | Fixed |
Mounting Type | Through Hole |
Current - Output | 500mA |
Operating Temperature | -40°C ~ 125°C (TJ) |
Output Configuration | Positive |
Current - Quiescent (Iq) | 10 mA |
Voltage - Input (Max) | 26V |
Number of Regulators | 1 |
Supplier Device Package | TO-220-3 |
Voltage - Output (Max) | - |
Voltage - Output (Min/Fixed) | 5V |
Control Features | - |
PSRR | - |
Voltage Dropout (Max) | 1V @ 500mA |
Protection Features | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage |
Current - Supply (Max) | 20 mA |
