IRFR7440TRPBF

N-Channel 40 V 90A (Tc) 140W (Tc) Surface Mount PG-TO252-3

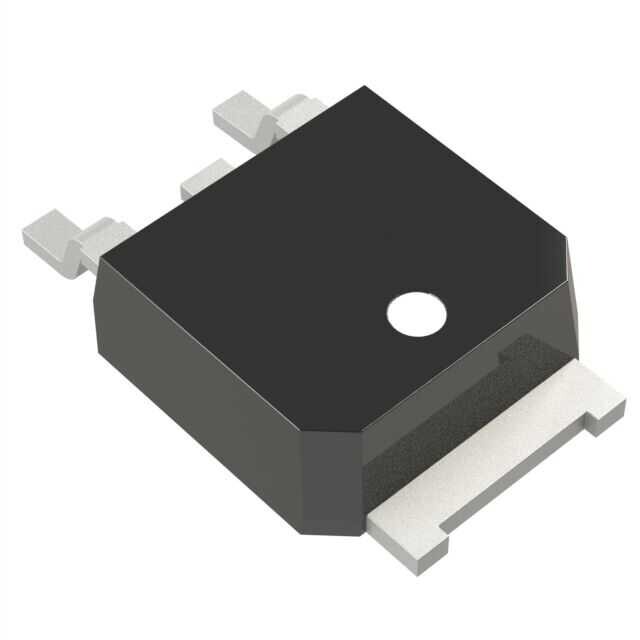

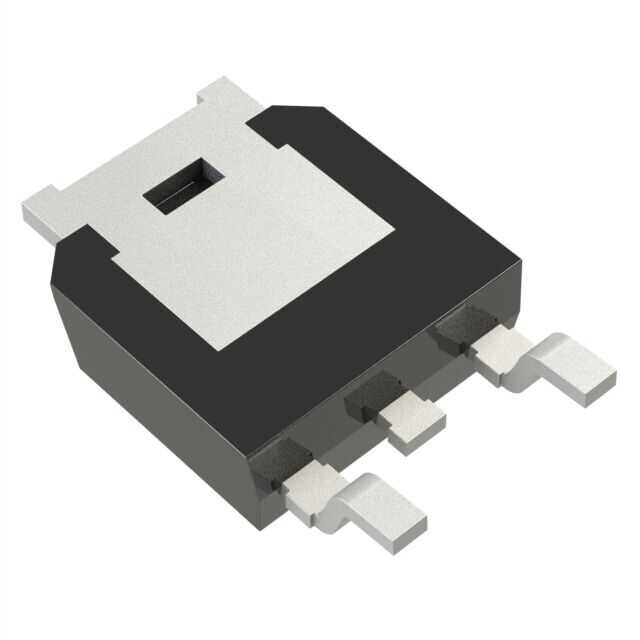

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
N-Channel 40 V 90A (Tc) 140W (Tc) Surface Mount PG-TO252-3 - 1
N-Channel 40 V 90A (Tc) 140W (Tc) Surface Mount PG-TO252-3 - 2
MAN. PRODUCT NUMBER : IRFR7440TRPBF Copy
MANUFACTURER : Infineon Technologies Copy
PACKAGE TYPE : Cut Tape (CT)
IRFR7440TRPBF - INFINEON TECHNOLOGIES - MOSFET N-CH 40V 90A DPAK
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs2.4mOhm @ 90A, 10V
Vgs(th) (Max) @ Id3.9V @ 100µA
Gate Charge (Qg) (Max) @ Vgs134 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4610 pF @ 25 V
FET Feature-
Power Dissipation (Max)140W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Grade-
Qualification-
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3
Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
