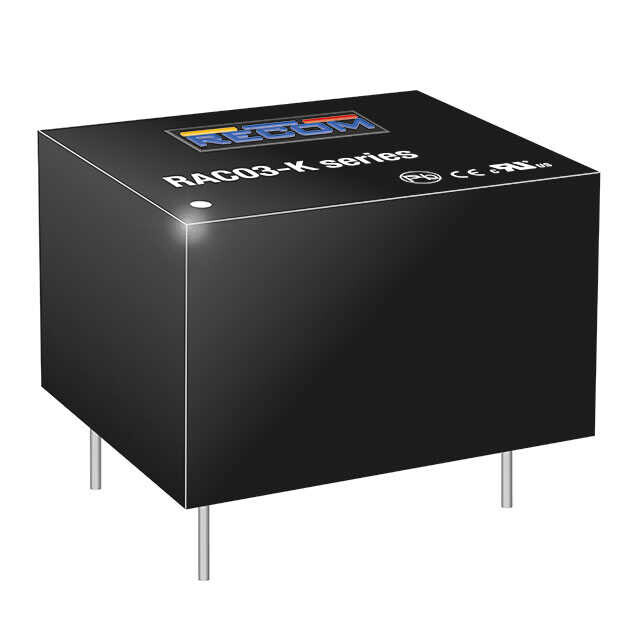

| RAC03-05SK - RECOM POWER - AC/DC CONVERTER 5V 3W | |
| Packaging | Tube |
| Features | Universal Input |
| Package / Case | 4-DIP Module |
| Size / Dimension | 1.12" L x 0.93" W x 0.70" H (28.5mm x 23.5mm x 17.9mm) |
| Mounting Type | Through Hole |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Type | Enclosed |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | CE, cURus |
| Efficiency | 74% |
| Current - Output (Max) | 600mA |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Power (Watts) | 3 W |
| Number of Outputs | 1 |
