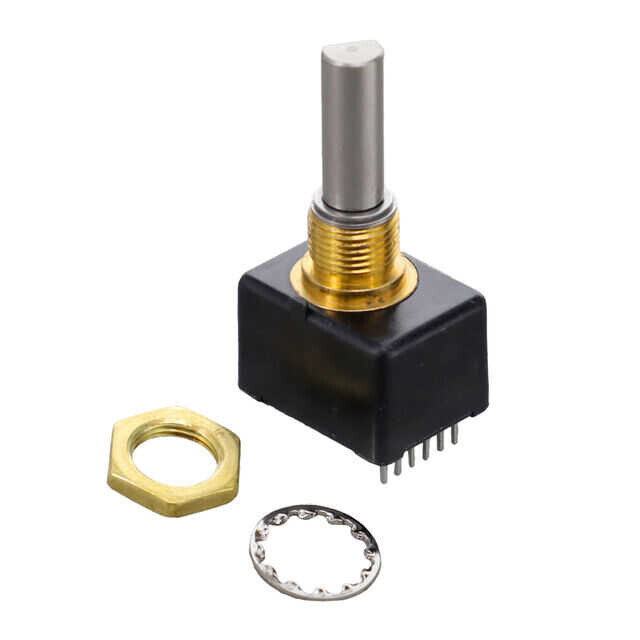

EMS22A50-M25-LD6
Rotary Encoder Magnetic 1024 Binary (Absolute) Vertical
| EMS22A50-M25-LD6 - BOURNS INC. - ROTARY ENCODER MAGNETIC 1024PPR | |
| DigiKey Programmable | Not Verified |
| Encoder Type | Magnetic |
| Output Type | Binary (Absolute) |
| Pulses per Revolution | 1024 |
| Voltage - Supply | 5V |
| Actuator Type | 6mm Dia Flatted End |
| Detent | No |
| Built in Switch | - |
| Mounting Type | Panel Mount |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Rotational Life (Cycles Min) | - |
