C2M1000170D

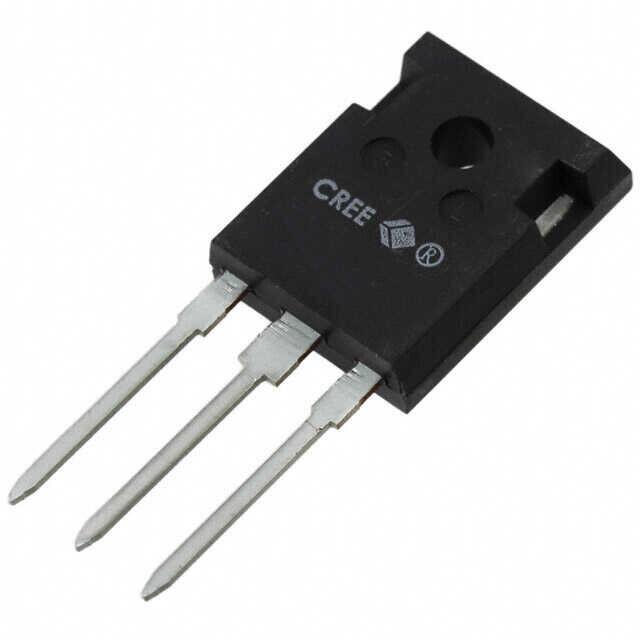

N-Channel 1700 V 4.9A (Tc) 69W (Tc) Through Hole TO-247-3

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
N-Channel 1700 V 4.9A (Tc) 69W (Tc) Through Hole TO-247-3 - 1
MAN. PRODUCT NUMBER : C2M1000170D Copy
MANUFACTURER : Wolfspeed, Inc. Copy
PACKAGE TYPE : Tube
C2M1000170D - WOLFSPEED, INC. - SICFET N-CH 1700V 4.9A TO247-3
PackagingTube
Package / CaseTO-247-3
Mounting TypeThrough Hole
Operating Temperature-55°C ~ 150°C (TJ)
TechnologySiCFET (Silicon Carbide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C4.9A (Tc)
Rds On (Max) @ Id, Vgs1.1Ohm @ 2A, 20V
FET Feature-
Power Dissipation (Max)69W (Tc)
Vgs(th) (Max) @ Id4V @ 500µA
Supplier Device PackageTO-247-3
Drive Voltage (Max Rds On, Min Rds On)20V
Vgs (Max)+25V, -10V
Drain to Source Voltage (Vdss)1700 V
Gate Charge (Qg) (Max) @ Vgs13 nC @ 20 V
Input Capacitance (Ciss) (Max) @ Vds191 pF @ 1000 V
