8000072454

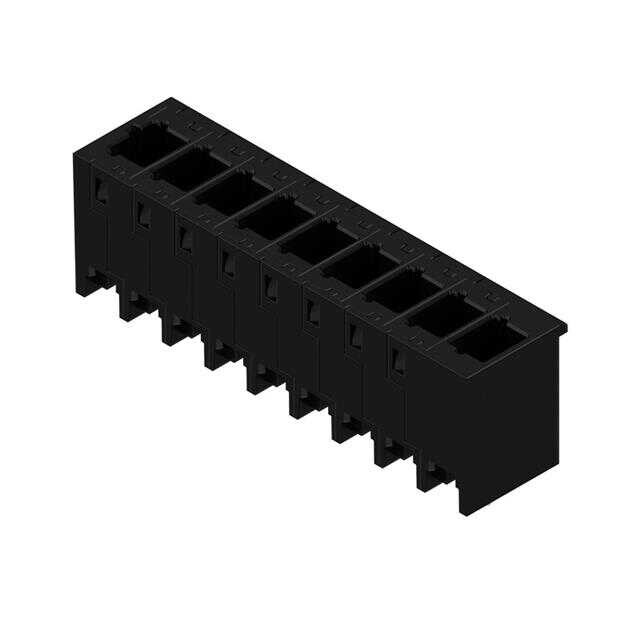

9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole
| 8000072454 - WEIDMÜLLER - PCB PLUG-IN CONNECTOR (BOARD CON | |
| Packaging | Tube |
| Features | - |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Pitch | 0.197" (5.00mm) |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Operating Temperature | -50°C ~ 100°C |
| Termination Style | Solder |
| Current - IEC | 25.3A |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Positions Per Level | 9 |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Contact Mating Finish | Tin |
| Current - UL | 14 A |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
