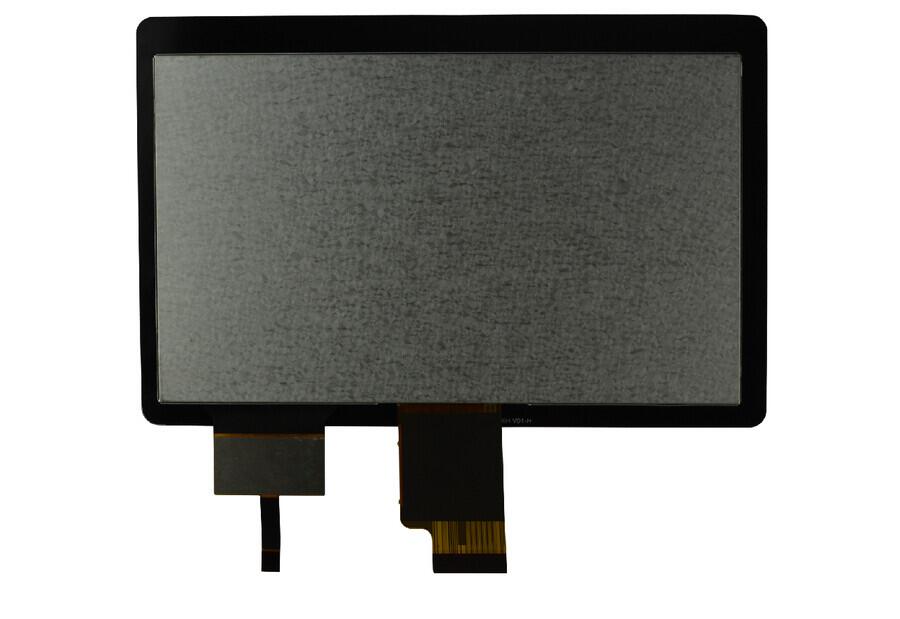

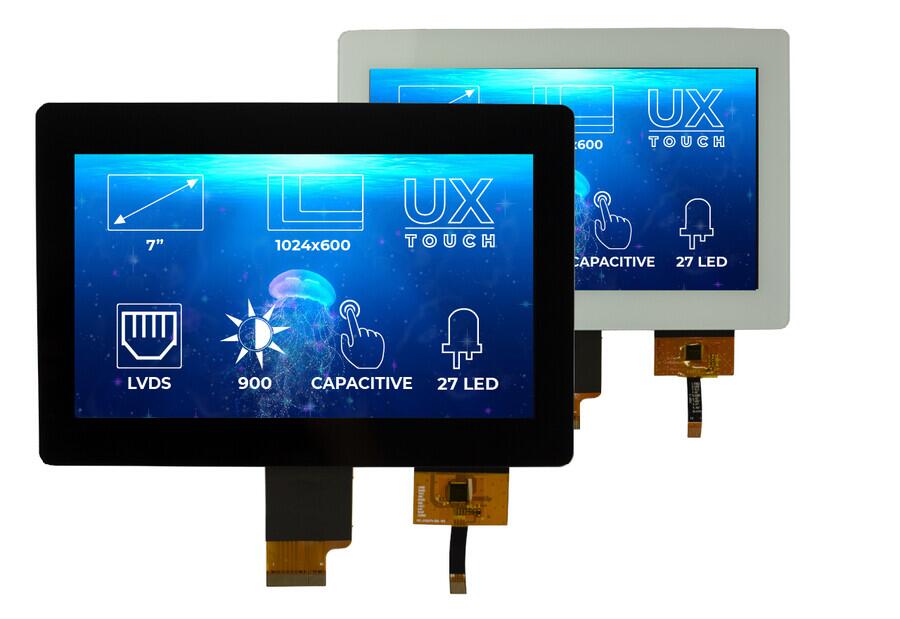

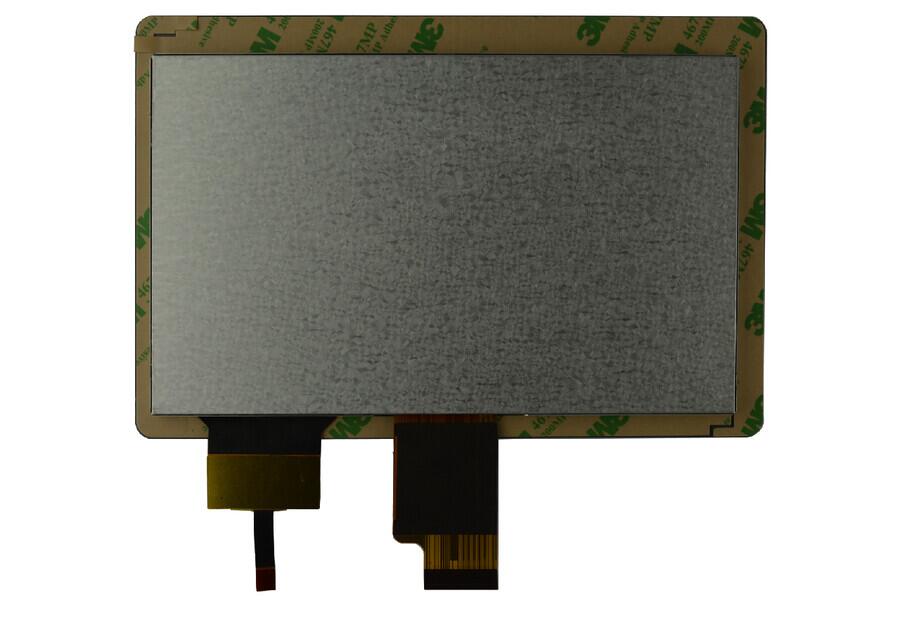

RVT70USLNWC00 | |
LCD Type | TFT/Transmissive/Normally black |
Size | 7.0 Inch |
Viewing Direction | Full Angle |
Active Area (W × H) | 154.21 × 85.92 mm2 |
Dot Pitch (W × H) | 0.1432 × 0.1506 mm2 |
Number Of Dots | 1024 (RGB) × 600 |
Driver IC | EK79001HK+EK73215BCGA |
Backlight Type | 27 LEDs |
Interface Type | LVDS |
Environment | RGB Vertical Stripe |
Surface Treatment | Anti-glare / Clear (for CTP) |
Input Voltage | 3.3V |
