691351400006

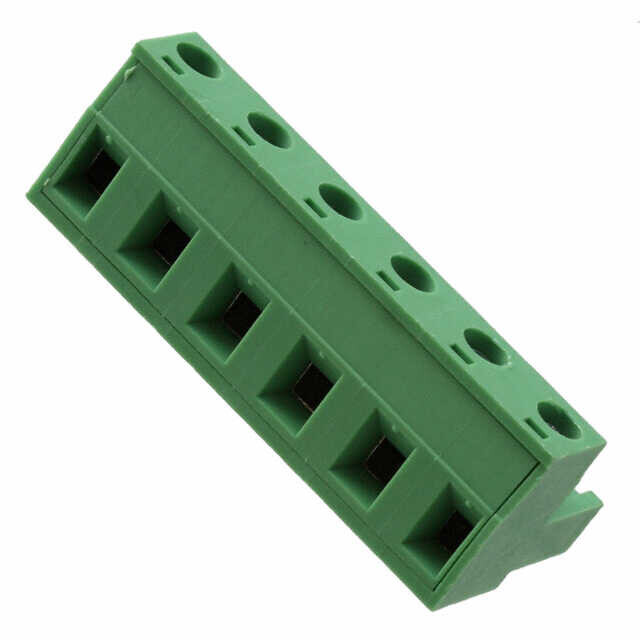

6 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
| 691351400006 - WÜRTH ELEKTRONIK - TERM BLOCK PLUG 6POS 7.62MM | |
| Packaging | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Pitch | 0.300" (7.62mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 105°C |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 12-24 AWG |
| Wire Gauge or Range - mm² | 0.2-3mm² |
| Positions Per Level | 6 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | - |
| Current - UL | 20 A |
| Voltage - UL | 300 V |
