31166106

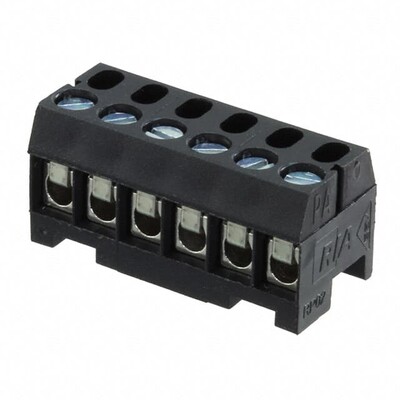

6 Position Terminal Block Plug for Unshrouded Header 0.138" (3.50mm) 90° Free Hanging (In-Line)
| 31166106 - METZ CONNECT USA INC. - SCREW TYPE TERMINAL BLOCK, PLUG, | |
| Packaging | Bulk |
| Features | - |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Pitch | 0.138" (3.50mm) |
| Type | Plug for Unshrouded Header |
| Operating Temperature | -40°C ~ 105°C |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 0.08-0.75mm² |
| Positions Per Level | 6 |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Contact Mating Finish | - |
| Current - UL | 8 A |
| Voltage - UL | 125 V |
