2741590000

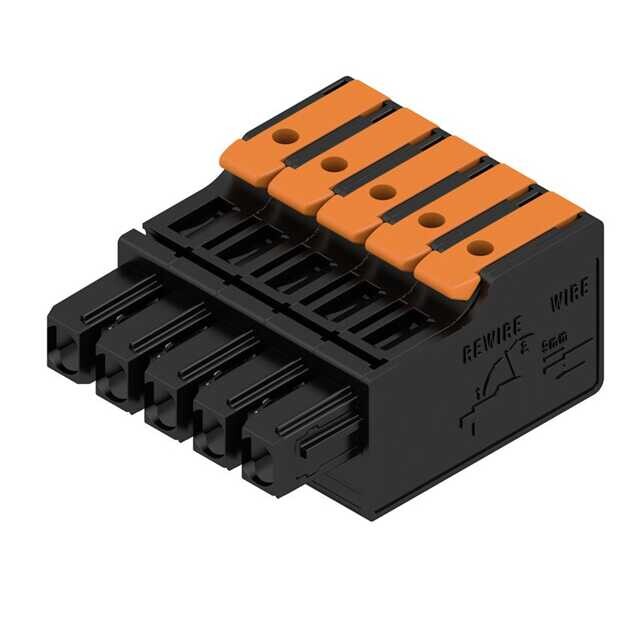

5 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
| 2741590000 - WEIDMÜLLER - PCB CONNECTOR, PLUG, 5.00MM PITC | |
| Packaging | Box |
| Features | - |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Pitch | 0.197" (5.00mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -50°C ~ 100°C |
| Termination Style | Screwless - Snap In |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-18 AWG |
| Wire Gauge or Range - mm² | 0.5-2.5mm² |
| Positions Per Level | 5 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 18.5 A |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
