256-407

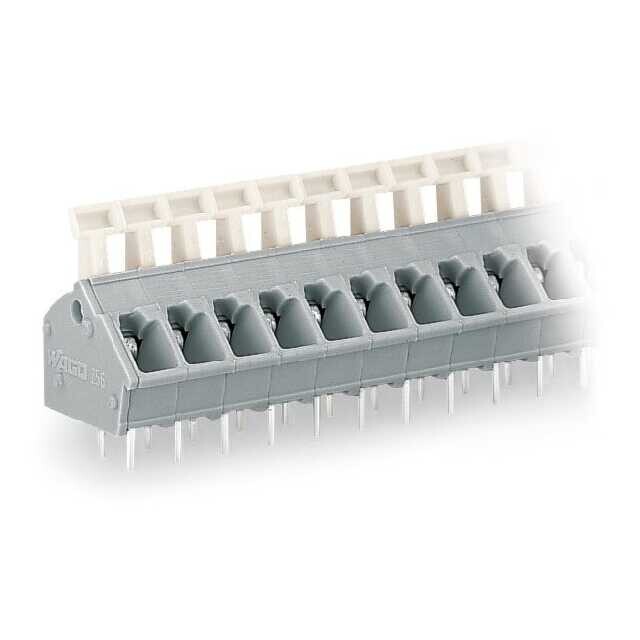

7 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
| 256-407 - WAGO CORPORATION - PCB TERMINAL BLOCK; PUSH-BUTTON; | |
| Number of Levels | 1 |
| Positions Per Level | 7 |
| Pitch | 0.200" (5.08mm) |
| Mating Orientation | 45° (135°) Angle with Board |
| Current | 15 A |
| Voltage | 300 V |
| Wire Gauge | 12-28 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screwless - Push Button Clamp |
| Features | Push Button Actuated |
| Color | Gray |
