252103

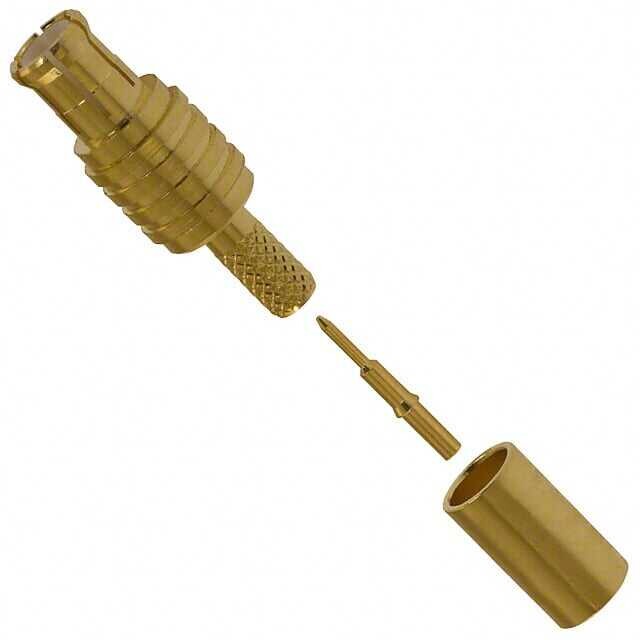

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
| 252103 - AMPHENOL RF - CONN MCX PLUG STR 50 OHM SOLDER | |
| Connector Style | MCX |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Fastening Type | Snap-On |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Features | - |
| Housing Color | Gold |
| Ingress Protection | - |
| Center Contact Material | Brass |
