1173520000

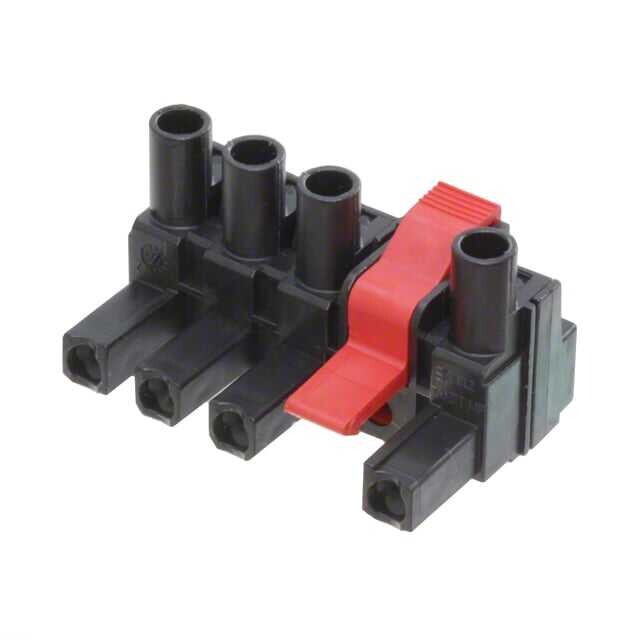

4 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
| 1173520000 - WEIDMÜLLER - TERM BLOCK PLUG 4POS 7.62MM | |
| Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.300" (7.62mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 29A |
| Voltage - IEC | 630 V |
| Current - UL | 20 A |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 12-20 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Color | Black |
| Operating Temperature | -50°C ~ 100°C |
| Contact Mating Finish | Tin |
| Features | Latch Lock |
