MAX4534CUD+T
1 Circuit IC Switch 4:1 400Ohm 14-TSSOP

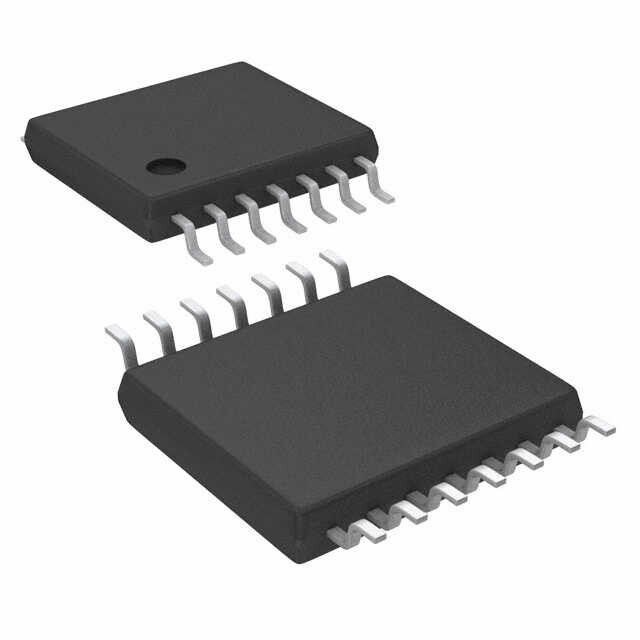

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MAN. PRODUCT NUMBER
:
MAX4534CUD+T Copy
MANUFACTURER
:
Analog Devices Inc. Maxim Integrated Copy
PACKAGE TYPE
:
Cut Tape (CT)
Teklif Almak İçin Lütfen ÜYE GİRİŞİ yapınız.
| MAX4534CUD+T - ANALOG DEVICES INC./MAXIM INTEGRATED - IC SWITCH SP4TX1 400OHM 14TSSOP | |
| Packaging | Cut Tape (CT) |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 400Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 14-TSSOP |
| Voltage - Supply, Single (V+) | 9V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Charge Injection | 1pC |
| Crosstalk | -53dB @ 1MHz |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Switch Time (Ton, Toff) (Max) | 275ns, 200ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 6.5pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 1 |
